Fox Shox - Sea Otter 2011

Apr 13, 2010 at 23:00

Update Wed 10:15 am: Added details and spec lists for all 180, 160, 40 products ( 13 total products )
* pricing to follow
Here is a quick preview of the new Fox Shox 2011 suspension lineup.

Stay tuned for more coverage.

(Password protected)x

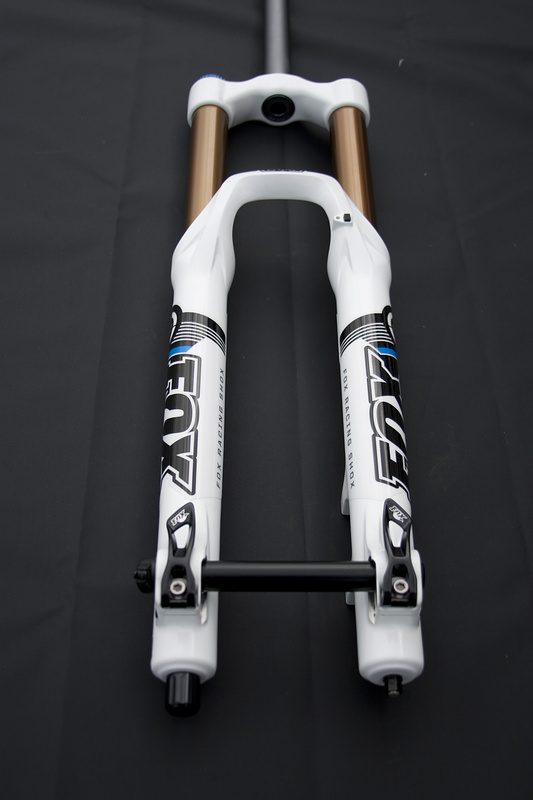

	Fox Racing 2011 36 180 Float FIT RLC	Fox Racing 2011 36 180 Float R	Fox Racing 2011 36 180 Talas FIT RLC	Fox Racing 2011 36 180 Talas R
Price	$0	$0	$0	$0
Weight	2350 g	2380 g	2430 g	2470 g
Color Options	White	White	Black Diamond	Black Diamond
Travel	180 mm	180 mm	180 mm	180 mm
Spring	Air	Air	Air	Air
Crown	Single	Single	Single	Single
Body Type	Magnesium	Magnesium	Magnesium	Magnesium
Rebound	External dial	External dial	External dial	External dial
Stanchion material	Kashima Coat	Hard anodized	Kashima Coat	Hard anodized
Steer Tube	1.125	1.125	1.125	1.125
Damping	FIT	Open Bath	FIT	Open Bath
DropOut Options	20mm	20mm	20mm	20mm
Compression	Low speed, High speed compression	Internal	Low speed, High speed compression	Internal

Compare to Other

	Fox Racing 2011 36 180 Van FIT RLC	Fox Racing 2011 36 180 Van R
Price	$0	$0
Weight	2700 g	2730 g
Color Options	Black Diamond	Black Diamond
Travel	180 mm	180 mm
Spring	Coil	Coil
Crown	Single	Single
Body Type	Magnesium	Magnesium
Rebound	External dial	External dial
Stanchion material	Kashima Coat	Hard anodized
Steer Tube	1.125	1.125
Damping	FIT	Open Bath
DropOut Options	20mm	20mm
Compression	Low speed, High speed compression	Internal

Compare to Other

Some of the options include (look at each fork for detail)

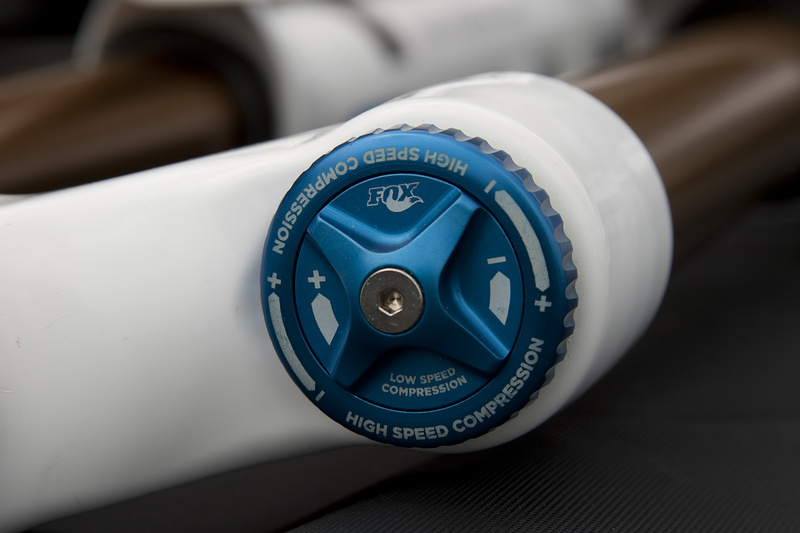

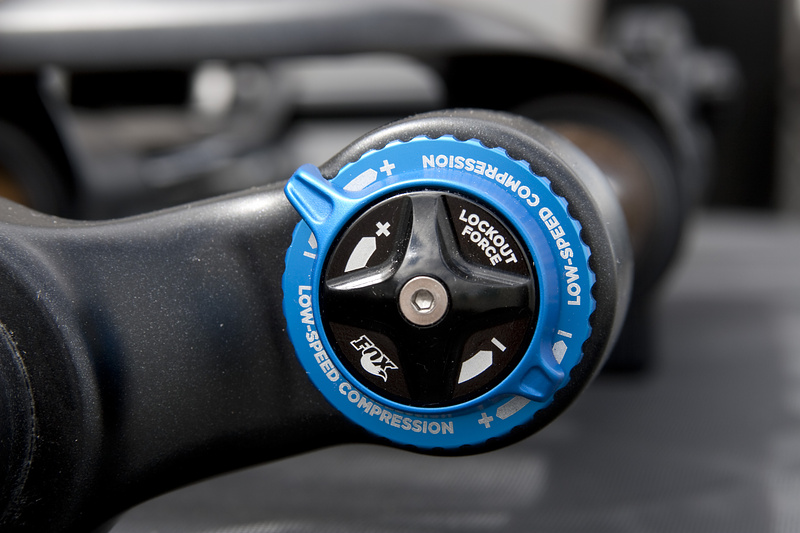

- Low-speed High-speed compression

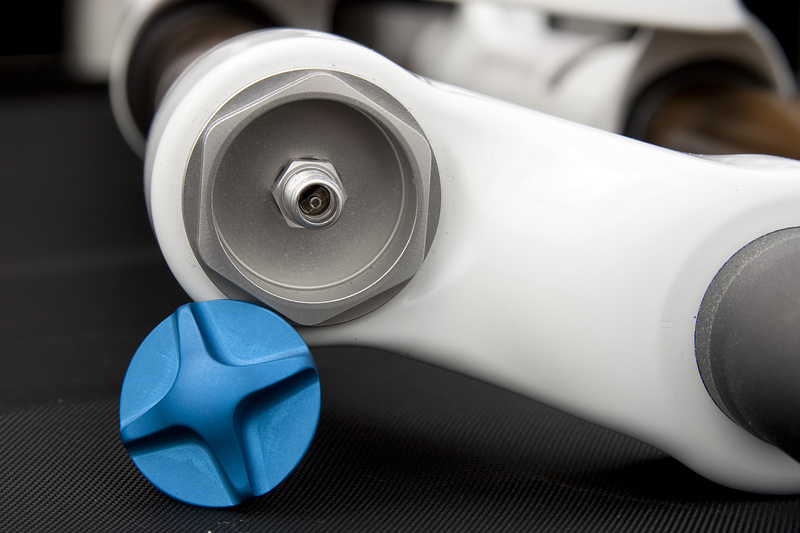

- Air spring pressure
- Lock out force adjust
- Travel is adjustable to 100mm in 10mm increments
- Rebound

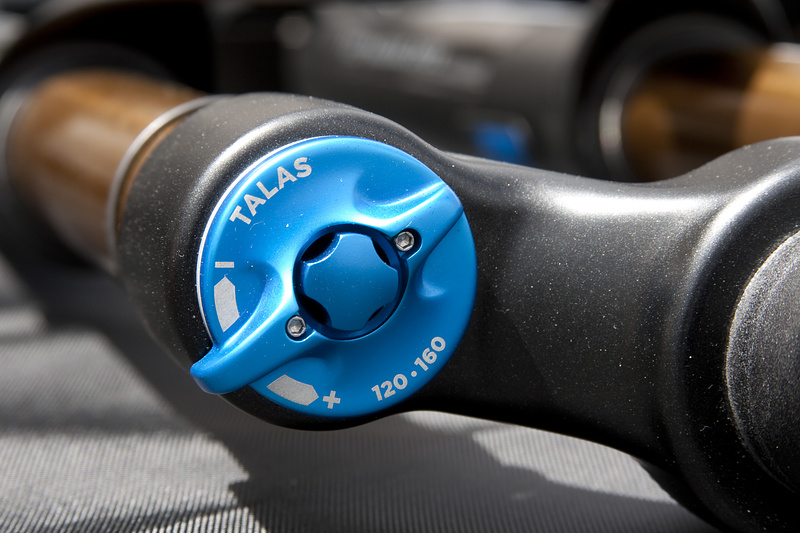

- Talas 2 Position travel is adjustable down to 100mm in 10mm increments

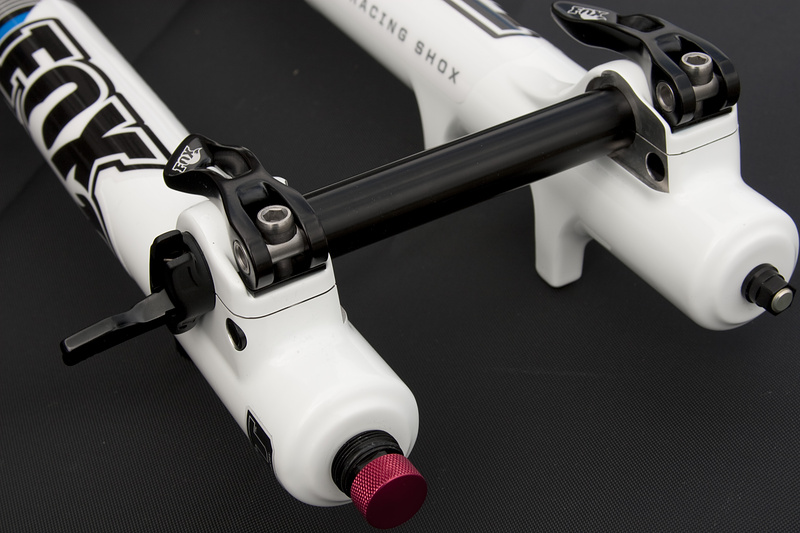

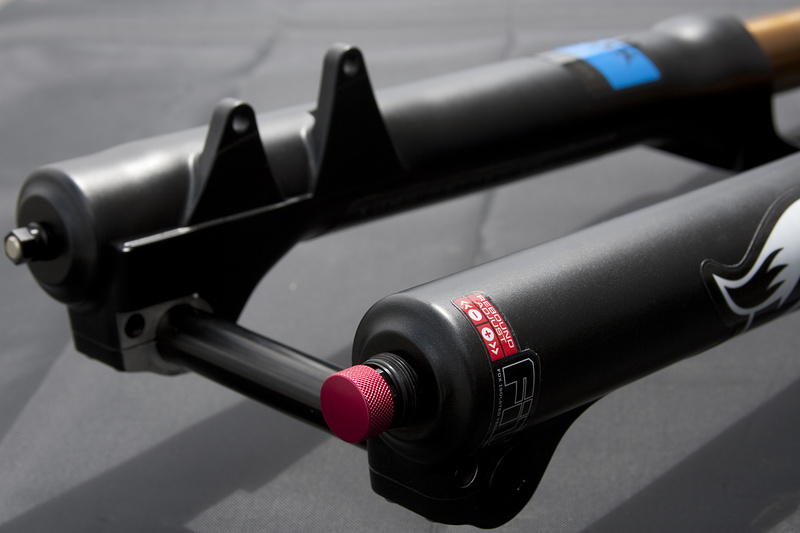

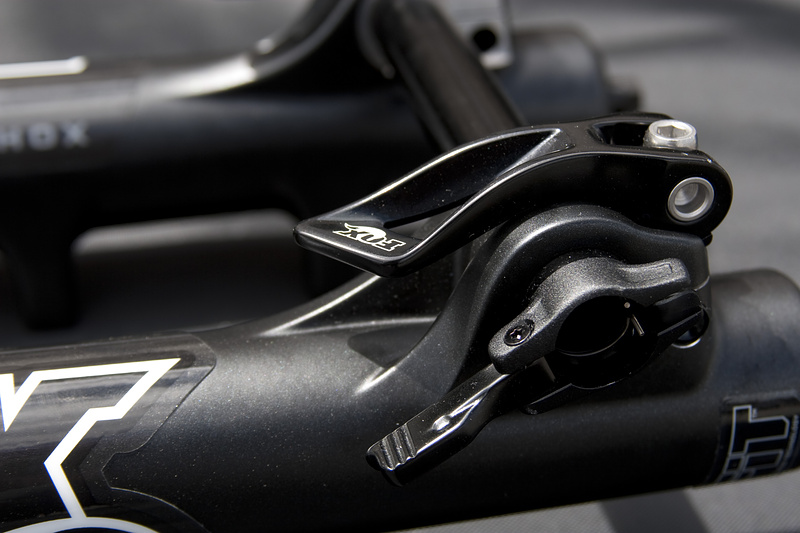

- 20QR thru axle system, Post style disc brake mounting
- New Kashima stanchion coating

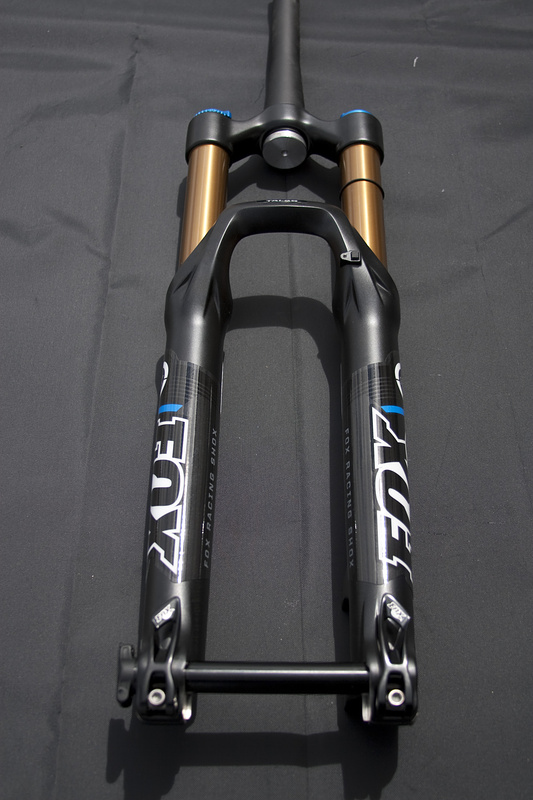

	Fox Racing 2011 36 160 Float FIT RLC	Fox Racing 2011 36 160 Float R	Fox Racing 2011 36 160 Talas FIT RLC	Fox Racing 2011 36 160 Talas R
Price	$0	$0	$0	$0
Weight	2030 g	2050 g	2110 g	2130 g
Color Options	White	White	Black Diamond	Black Diamond
Travel	160 mm	160 mm	160 mm	160 mm
Spring	Air	Air	Air	Air
Crown	Single	Single	Single	Single
Body Type	Magnesium	Magnesium	Magnesium	Magnesium
Rebound	External dialq	External dial	External dial	External dial
Stanchion material	Kashima Coat	Hard anodized	Kashima Coat	Hard anodized
Steer Tube	1.125	1.125	1.125	1.125
Damping	FIT	Open Bath	FIT	Open Bath
DropOut Options	20mm	20mm	20mm	20mm
Compression	Low speed compression	Internal	Low speed compression	Internal

Compare to Other

	Fox Racing 2011 36 160 Van FIT RLC	Fox Racing 2011 36 160 Van R
Price	$0	$0
Weight	2320 g	2340 g
Color Options	Black Diamond	Black Diamond
Travel	160 mm	160 mm
Spring	Coil	Coil
Crown	Single	Single
Body Type	Magnesium	Magnesium
Rebound	Dial	External dial
Stanchion material	Kashima Coat	Hard anodized
Steer Tube	1.125	1.125
Damping	FIT	Open Bath
DropOut Options	15mm	15mm
Compression	Low speed, High speed compression	N/A

Compare to Other

	Fox Racing 2011 40 FIT RC2
Price	$0
Weight	3090 g
Color Options	Black Diamond, White
Travel	203 mm
Spring	Coil
Crown	Dual
Body Type	Magnesium
Rebound	External dial
Stanchion material	Kashima Coat
Steer Tube	1.125
Damping	FIT
DropOut Options	20mm
Compression	Low speed, High speed compression

Compare to Other

Features
- NEW Kashima Coat

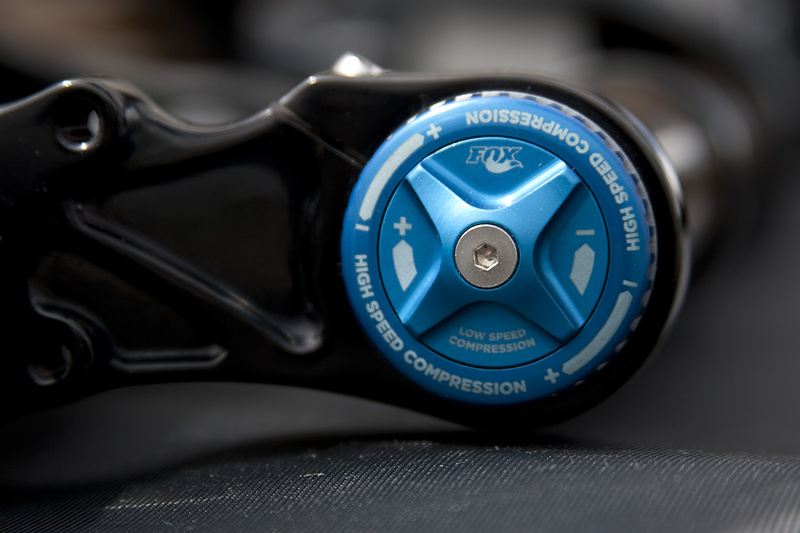

- Low-speed compression
- High-speed compression

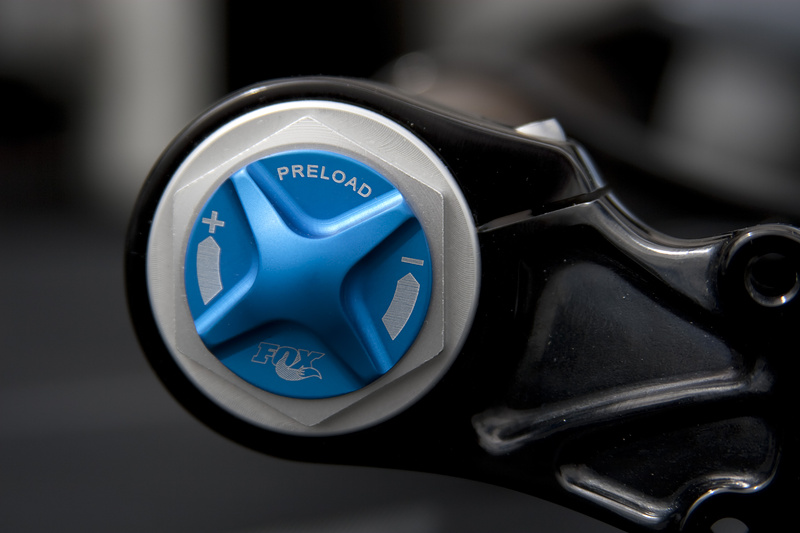

- Coil spring preload
- Rebound
- Hydraulic bottom-out resistance in damper
- Travel is adjustable down to 6.5 inches in half-inch increments

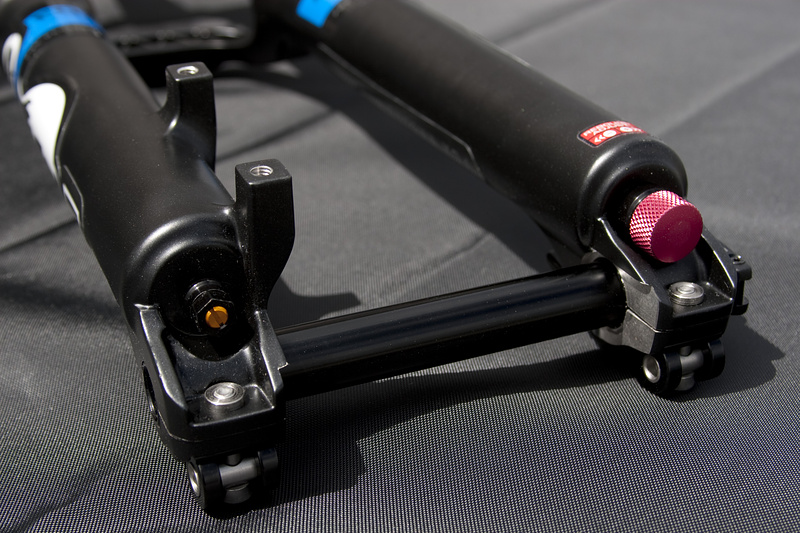

- 20 mm thru axle system, International Standard disc brake tabs
- Titanium Spring
